Memory Lane

Manufacturer: Stern Electronics, Incorporated, of Chicago, Illinois, USA (1977-1984) [Trade Name: Stern]
Year: 1978
Date: June, 1978
Type: Solid State Electronic (SS)
Players: 4
Production: 2,624 units (confirmed)

About This Machine

Memory Lane, manufactured by Stern Electronics starting in June 1978, is a notable early solid-state title from Stern. Its sports theme, centered on bowling, was a departure from the fantasy and adventure themes common at the time. It was also the last Stern game to use an electro-mechanical chime unit; Stern's next release, 'Lectronamo,' used an electronic sound board instead. A total of 2,624 units were produced.

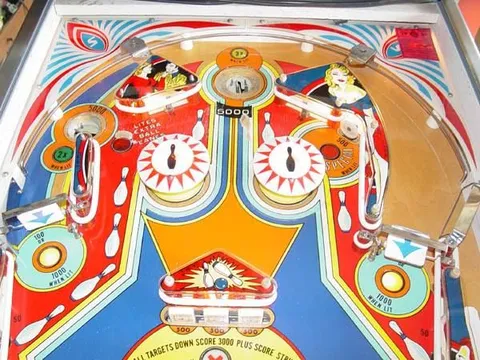

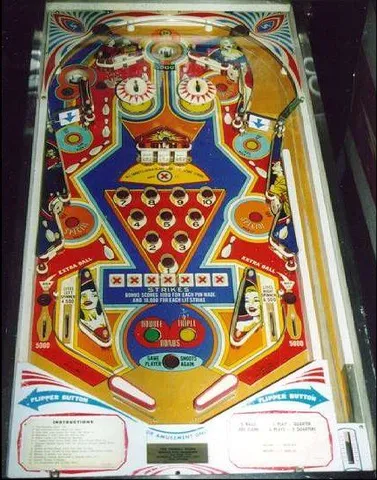

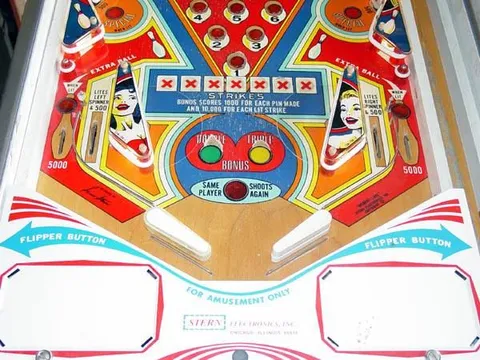

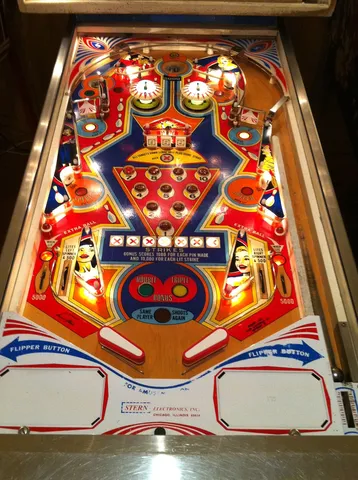

The game's features include two flippers, two pop bumpers, two slingshots, ten rollover buttons arranged in a bowling-pin configuration, a 3-bank drop target, three standup targets, two kick-out holes, and two spinning targets.

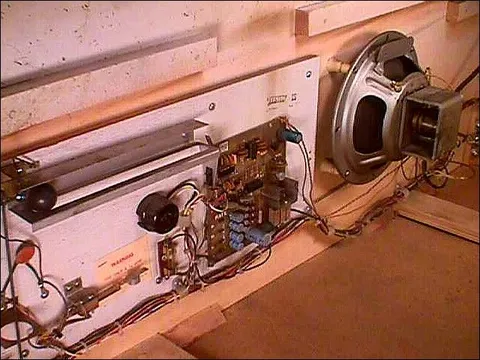

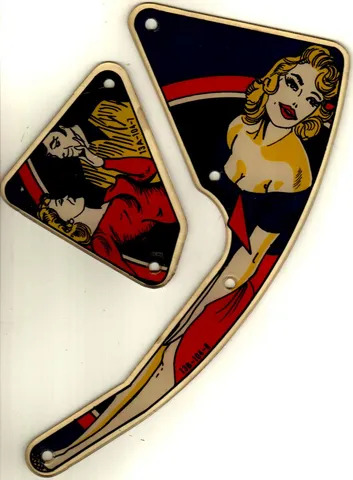

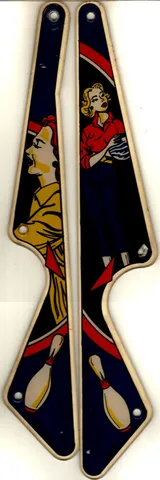

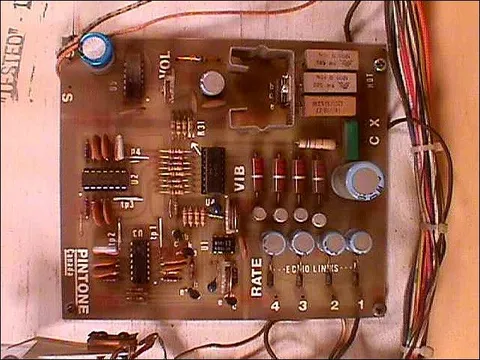

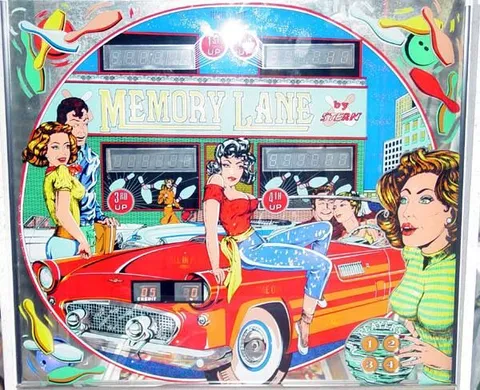

In terms of design and art, Memory Lane features a straightforward aesthetic that captures the essence of bowling, typical of Stern's output from this period. Some surviving examples are known to have a Pintone sound board and speaker installed, likely added by operators using parts supplied by Wico Corporation rather than as a factory feature.

Images (28)

Technical Details

Theme:
Sports - Bowling
Model Number:
104
MPU:
Stern M-100 MPU
Notable Features:

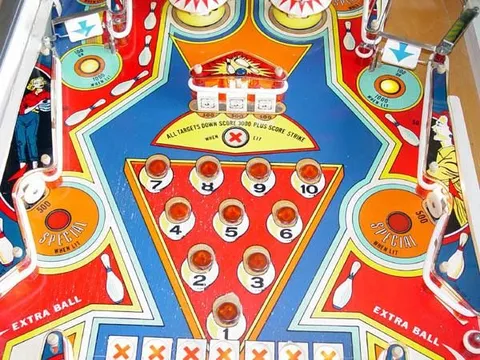

Flippers (2), Pop bumpers (2), Slingshots (2), Rollover buttons (10), 3-bank drop targets (1), Standup targets (3), Kick-out holes (2), Spinning targets (2). The ten rollover buttons are arranged like a set-up of bowling pins.

Credits

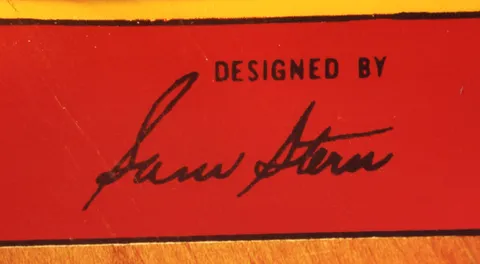

Designer:
Sam Stern, Mike Kubin

ROM Files

Documentation

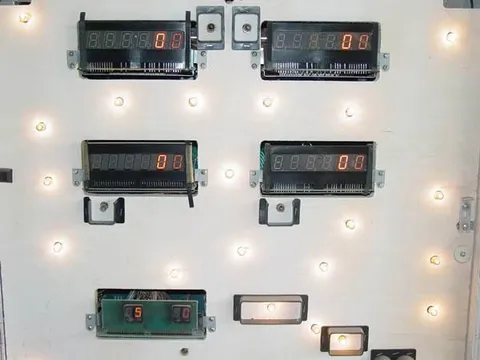

  • Display Board Schematic (Issue A dated 1-78)
    1 MB
    Download
  • M-100 MPU Schematic (High Resolution)
    2 MB
    Download
  • Manual
    5 MB
    Download
  • Playfield Parts Diagram
    168 KB
    Download
  • Schematic Diagrams (paginated)
    4 MB
    Download

Service Bulletins

  • Service Bulletin #7 - R OM Sets (July 7, 1978)
    12 MB
    Download

Other Files

  • Engineering Bulletin #9 - Momentary Coil Information Q1 to 14 & Q16 (undated)
    12 MB
    Download
