Mariner

Manufacturer: Bally Manufacturing Corporation (1931-1983) [Trade Name: Bally]
Year: 1971
Date: November, 1971
Type: Electro-mechanical (EM)
Players: 4
Production: 2,000 units (confirmed)

About This Machine

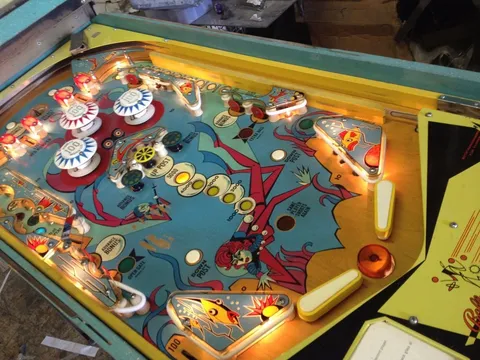

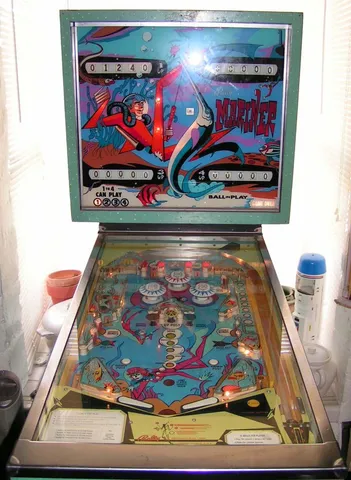

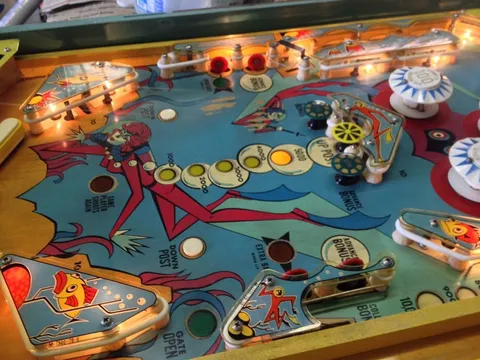

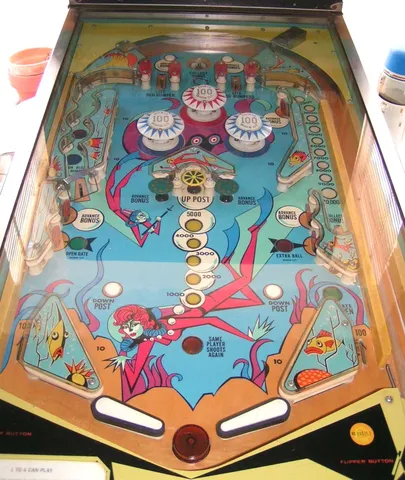

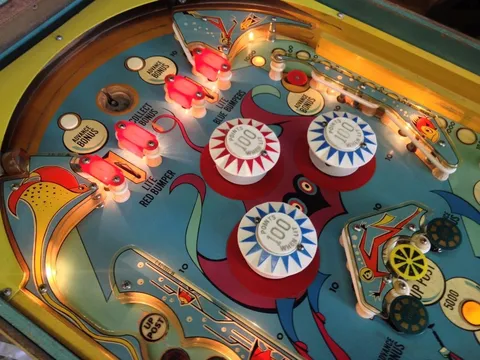

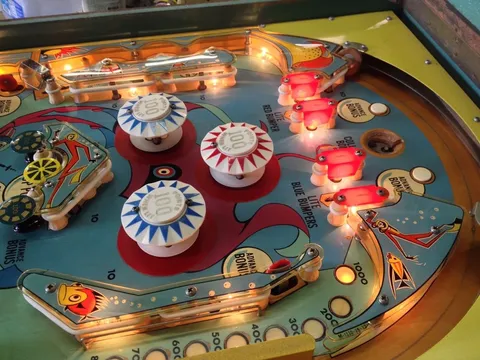

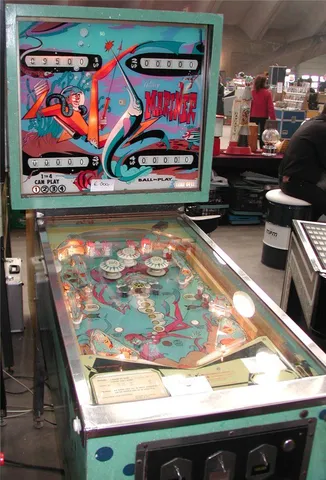

The Mariner, designed by Ted Zale with art by Christian Marche, was released in November 1971 by Bally Manufacturing Corporation. This four-player electro-mechanical machine combines a sports theme with spear fishing, featuring two flippers, three pop bumpers, three mushroom bumpers, two slingshots, five standup targets, and a kick-out hole.

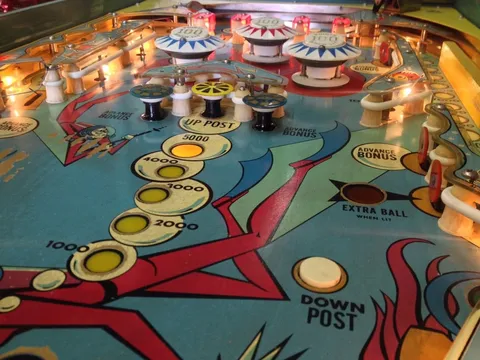

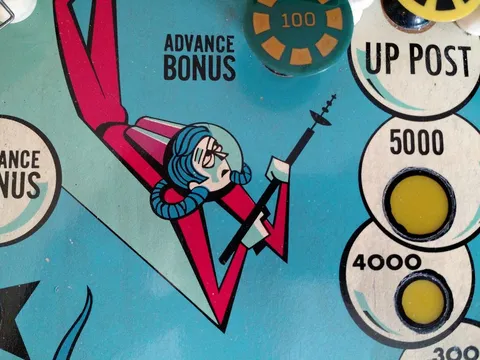

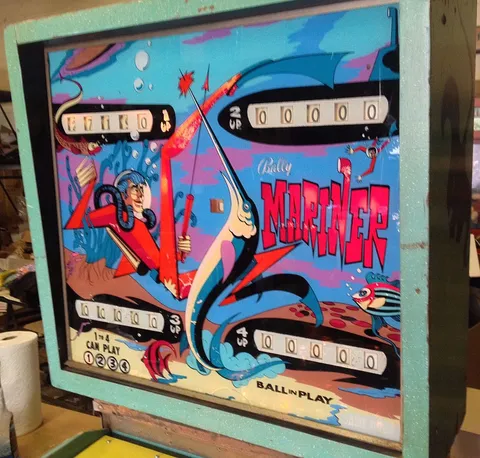

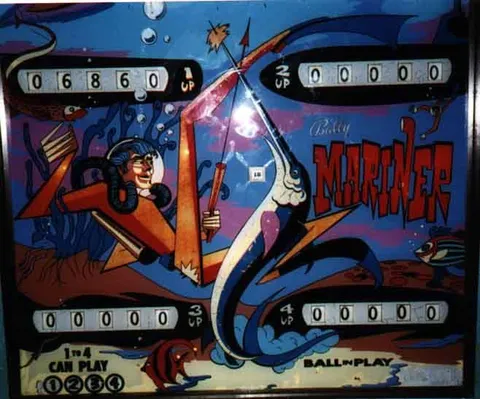

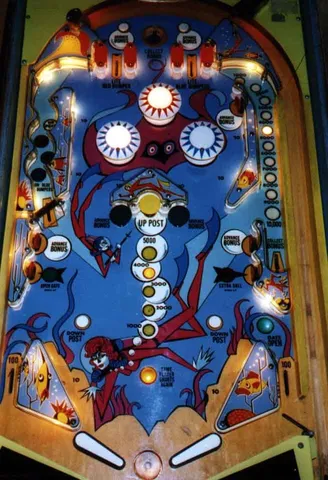

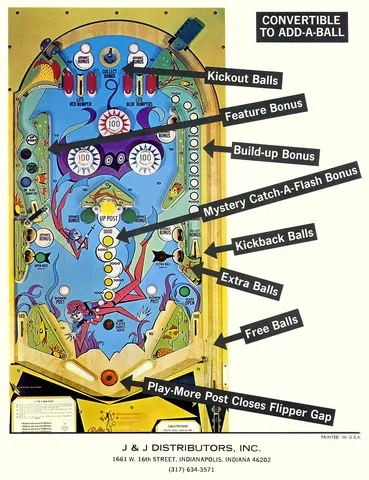

The machine's art and design reflect its water-sports theme, featuring colorful graphics that evoke spear fishing. The Mystery Catch-A-Flash Bonus feature in the center playfield is particularly noteworthy: its value is controlled by a continuous stepper unit that advances each time the ball hits a 10-point switch, rather than changing automatically as the name might suggest.

Mariner could also be converted to add-a-ball play, an option offered on many EM machines of the era for jurisdictions where replay awards were restricted. Bally also released a 2-player version of this game the same year under the name Sea Ray. With its blend of classic EM gameplay and a distinctive nautical theme, the Mariner remains an interesting piece of early-1970s Bally history.

Images (38)

Technical Details

Theme:
Sports - Water Sports - Spear Fishing
Model Number:
930
Notable Features:

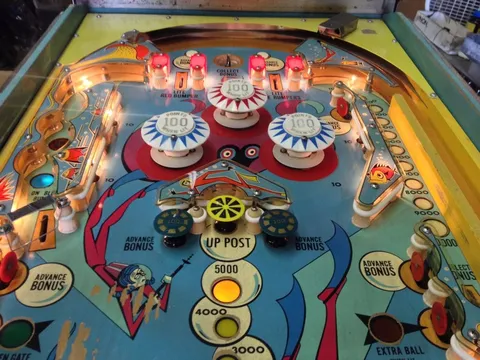

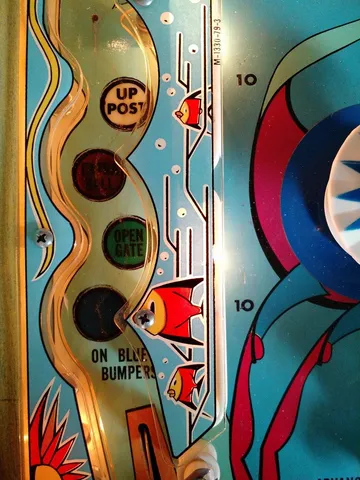

Flippers (2), Pop bumpers (3), Mushroom bumpers (3), Slingshots (2), Standup targets (5), Kick-out hole (1), Upper right kickback lane, Right outlane ball return gate, Up-post between flippers, Upper left chicane lane awards lit features. Can be converted to add-a-ball. The Mystery Catch-A-Flash Bonus in center playfield changes its values under the control of a continuous stepper unit, stepping once each time the ball hits a 10-point switch, and does not change autonomously as the feature's name might imply. Maximum displayed point score is 99,990 points per player. Replay wheel maximum: 25 Sound: 2 bells (10 point, 100/1000 point), knocker. Tilt penalty: ball in play

Credits

Designer:
Ted Zale
Artist:
Christian Marche

Documentation

  • Instruction Cards and Score Cards
    3 MB
    Download
  • Playfield Chart from 1973 Parts Catalog
    468 KB
    Download
  • Schematic Diagram (continuous)
    6 MB
    Download
  • Schematic Diagram (paginated)
    730 KB
    Download

Other Files

  • Installation And General Operation Instructions
    12 MB
    Download
