Lectronamo

Manufacturer: Stern Electronics, Incorporated, of Chicago, Illinois, USA (1977-1984) [Trade Name: Stern]
Year: 1978
Date: August, 1978
Type: Solid State Electronic (SS)
Players: 4
Production: 2,423 units (confirmed)

About This Machine

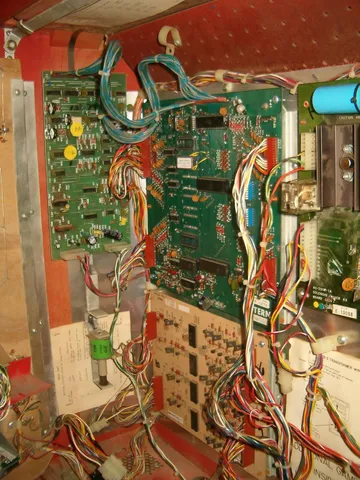

The Lectronamo, designed by Mike Kubin and released by Stern Electronics in August 1978, is a notable early solid-state Stern title: it was the first Stern game to feature electronic sound, generated by the SB-100 sound board.

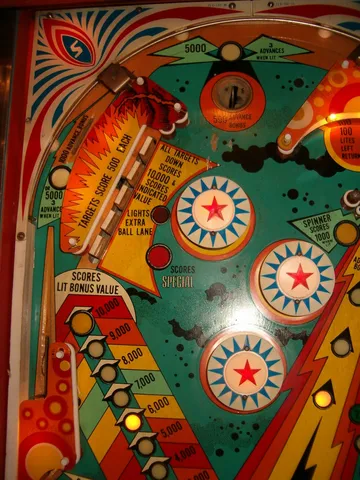

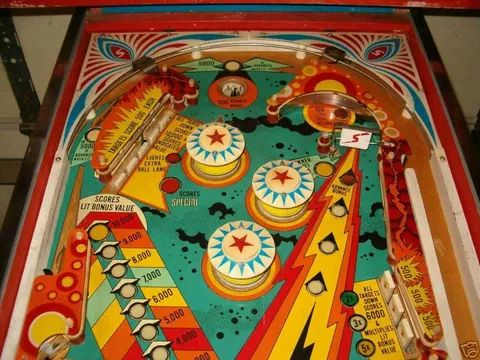

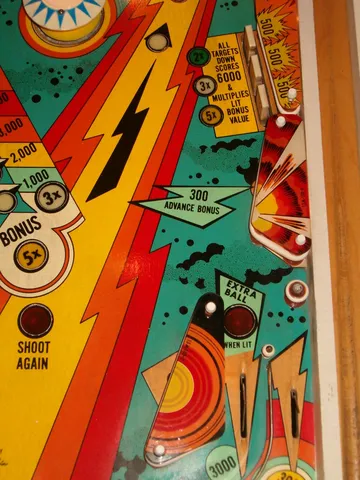

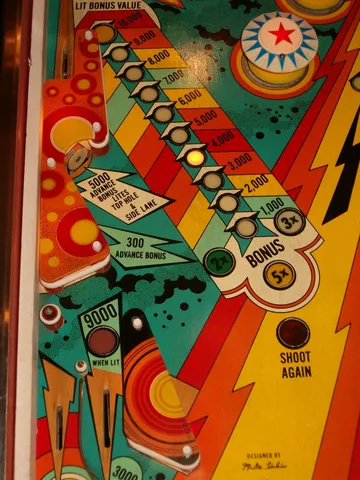

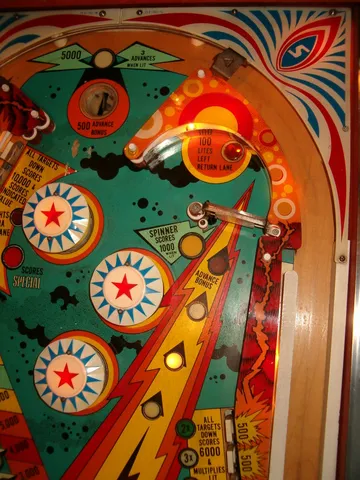

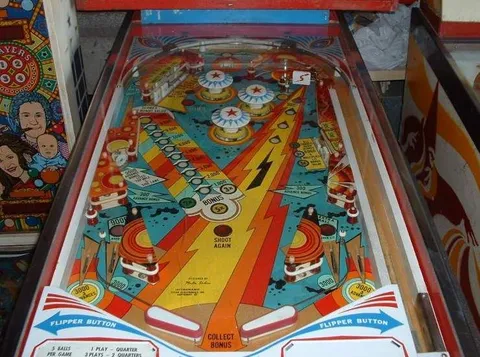

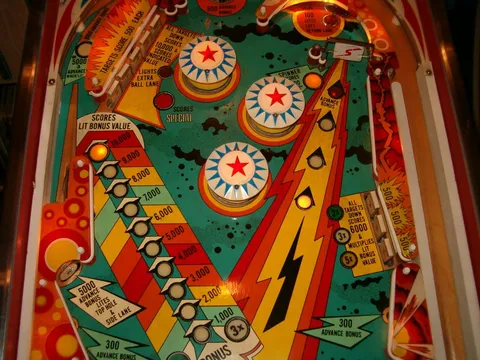

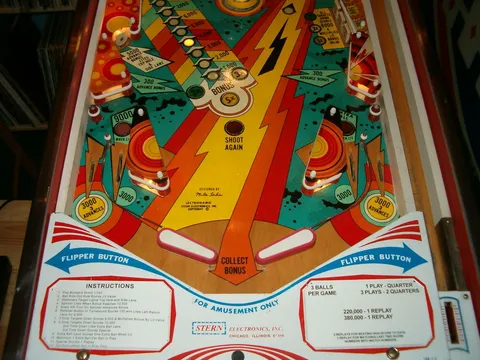

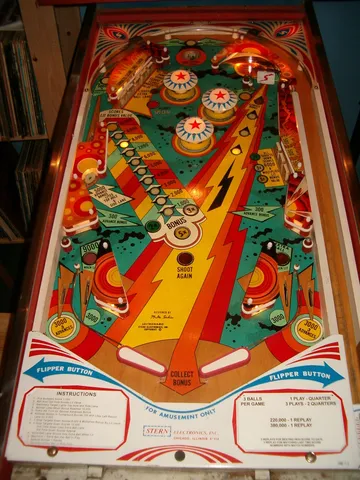

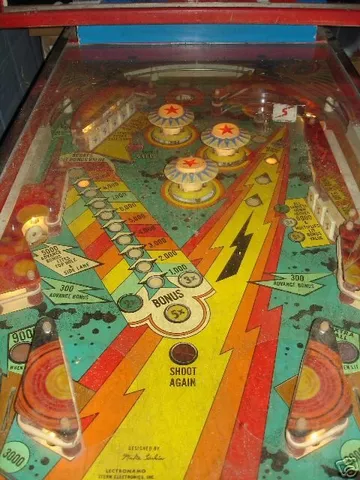

The Lectronamo's fantasy theme is expressed through its playfield of two flippers, three pop bumpers, two slingshots, a 5-bank and a 3-bank of drop targets, a spinning target, a kick-out hole, and an upper-left kickback lane.

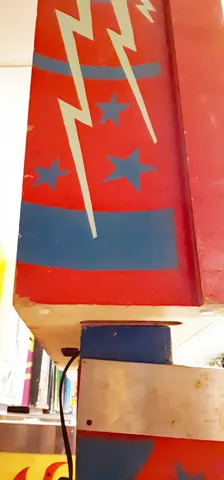

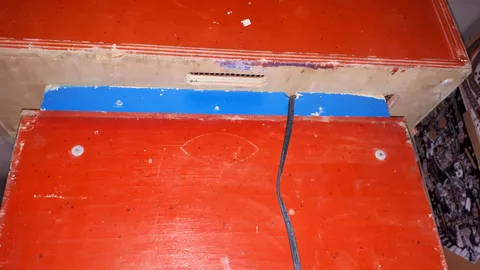

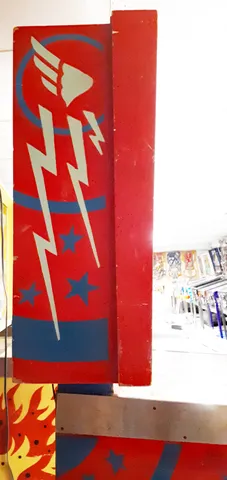

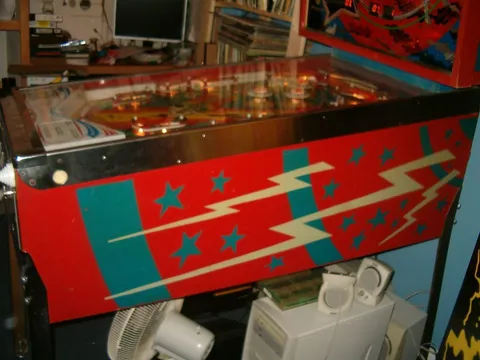

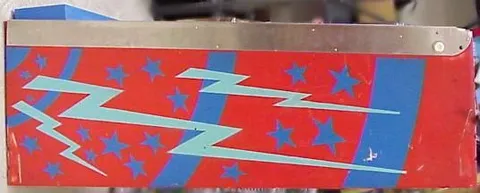

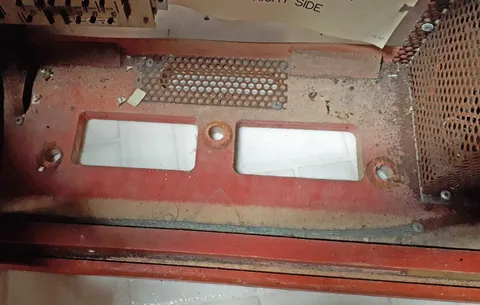

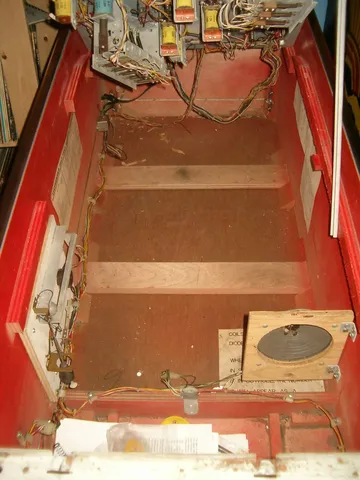

A rare variant of Lectronamo exists with a narrower cabinet neck (used on at least two known units), where the cabinet is nearly three inches shorter than standard, requiring a narrower neck and a three-bolt backbox instead of the usual four. The reason for this variation, and how many were produced, remains unknown. A total of 2,423 units were produced between August and October 1978.

Images (51)

Technical Details

Theme:
Fantasy
Model Number:
105
MPU:
Stern M-100 MPU
Notable Features:
Flippers (2), Pop bumpers (3), Slingshots (2), 5-bank drop targets (1), 3-bank drop targets (1), Spinning target (1), Kick-out hole (1), Upper left kickback lane.

Credits

Designer:
Mike Kubin

ROM Files

Documentation

  • English Manual (with paginated schematics)
    3 MB
    Download

Service Bulletins

  • Service Bulletin #11 - Bookkeeping Errors Due to Power Switch Toggling (undated)
    12 MB
    Download
  • Service Bulletin #7A - R OM Sets (October 16, 1978)
    11 MB
    Download

Other Files

  • Engineering Bulletin #9 - Momentary Coil Information Q1 to 14 & Q16 (undated)
    12 MB
    Download
