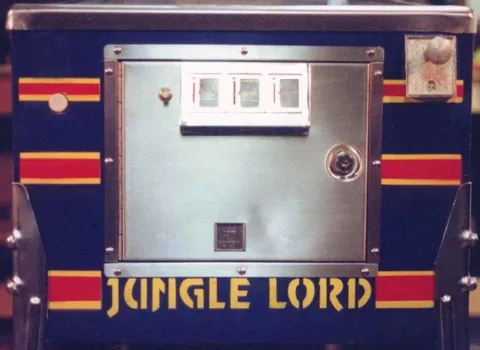

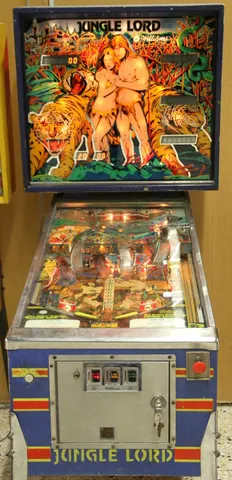

Jungle Lord

Manufacturer: Williams Electronics, Incorporated (1967-1985) [Trade Name: Williams]
Year: 1981
Date: February, 1981
Type: Solid State Electronic (SS)
Players: 4
Production: 6,000 units (confirmed)

About This Machine

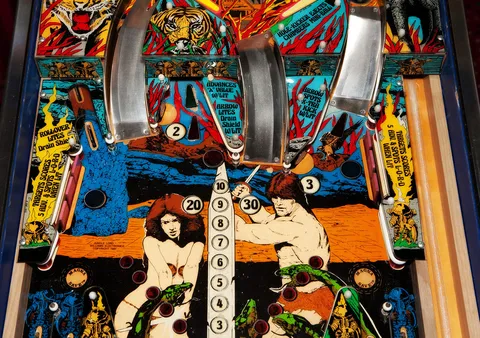

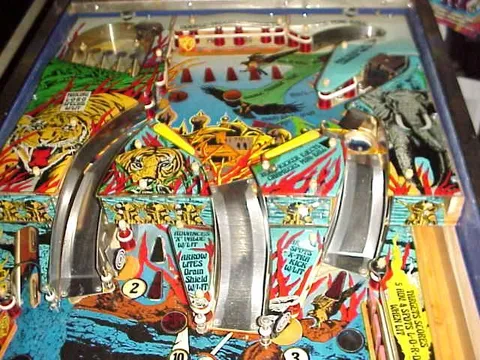

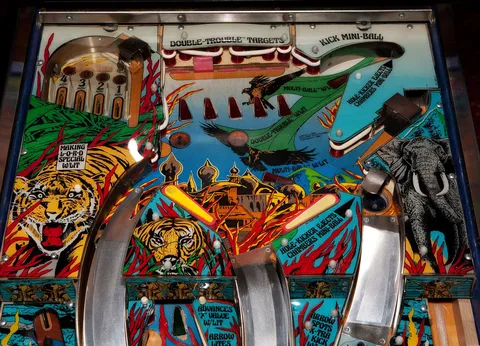

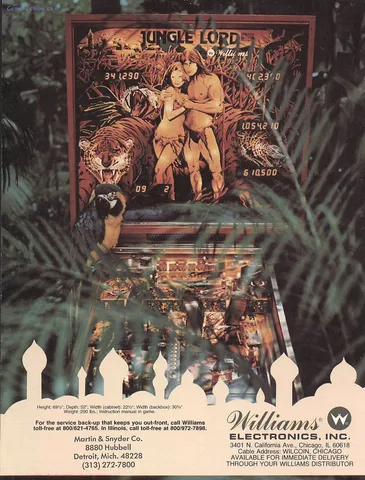

The Jungle Lord is a notable solid-state pinball machine from 1981, designed by Barry Oursler and produced by Williams Electronics. It is the second of four System 7 games featuring a split-level playfield, marking an innovative design approach for its time and allowing players to navigate between two distinct levels of gameplay.

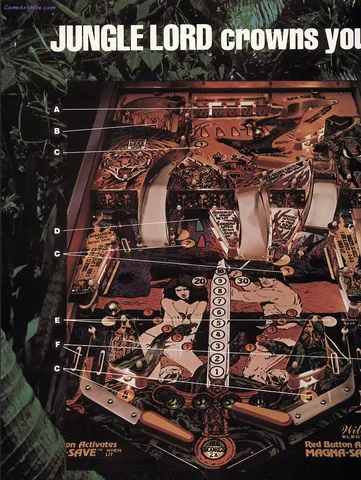

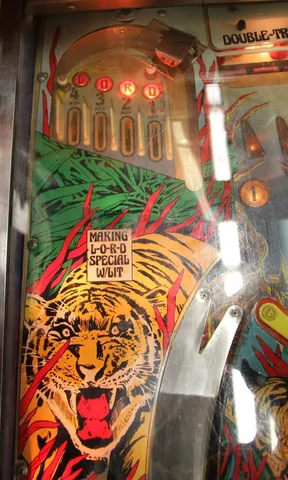

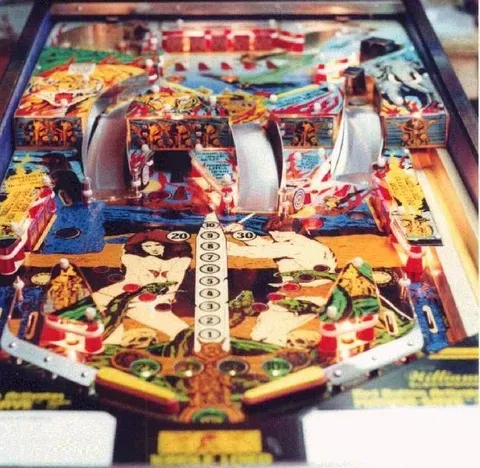

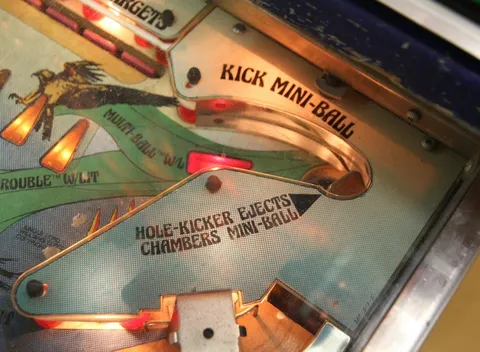

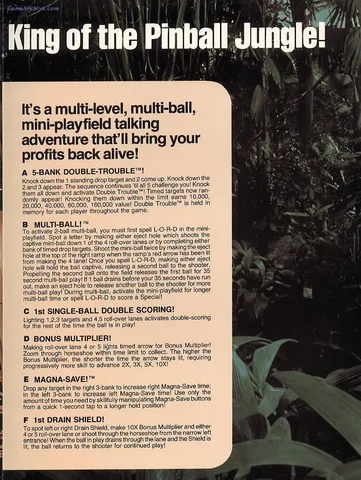

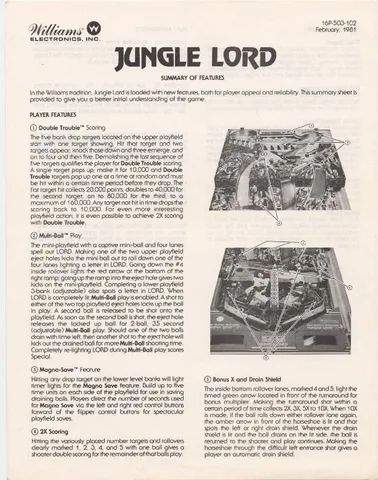

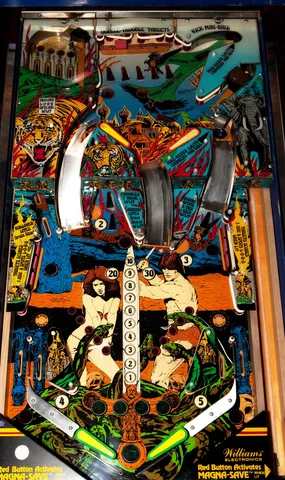

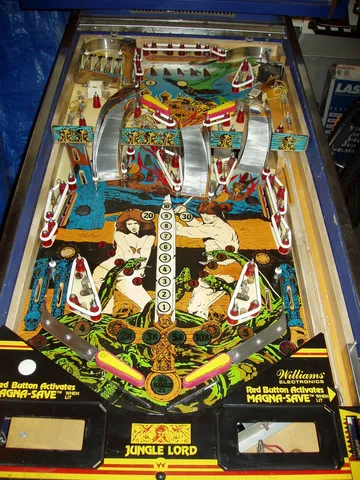

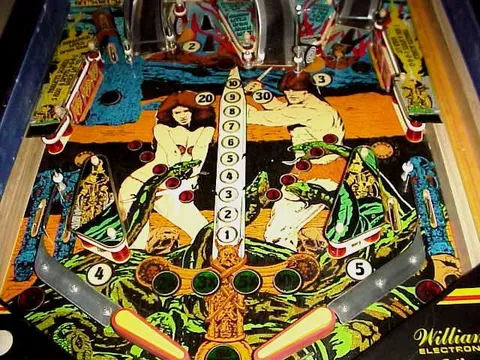

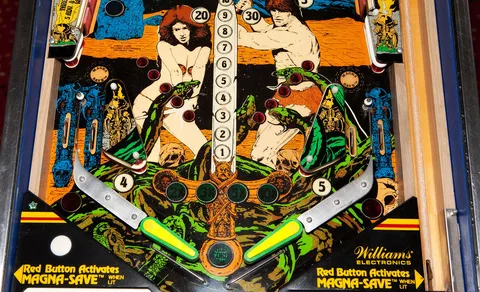

Key to the machine's unique experience is its four-flipper design, which offers unparalleled control over ball movement. Players can also target two 3-bank drop target banks and one 5-bank drop target bank across the playfield, with rewards awaiting successful shots. The Magna-Save feature adds an element of strategy, allowing players to save a ball and launch it back into action. Furthermore, the kick-out hole's clever design releases a trapped ball into a mini-bagatelle located in the upper playfield, creating a thrilling mini-game within the larger playfield.

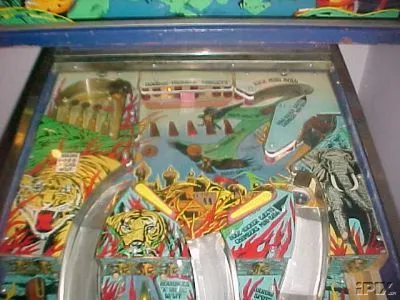

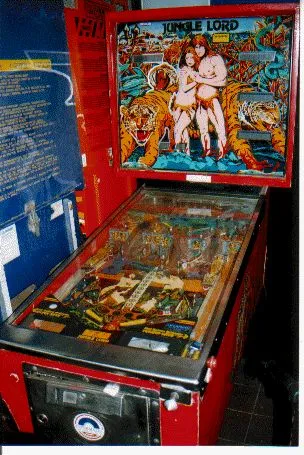

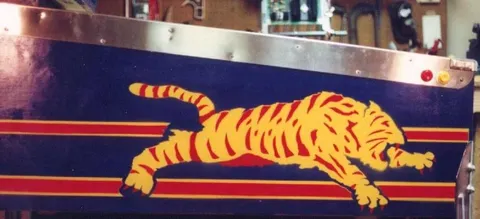

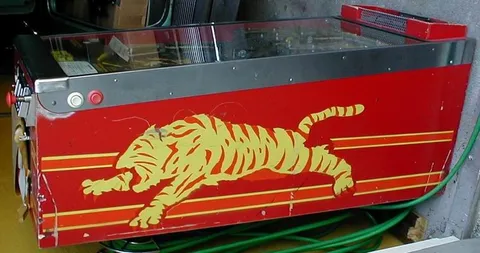

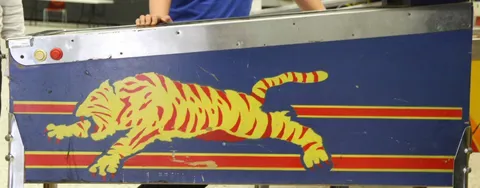

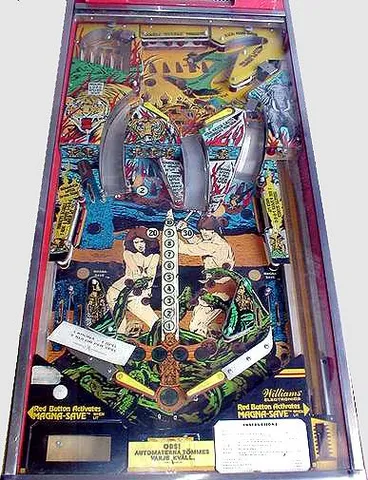

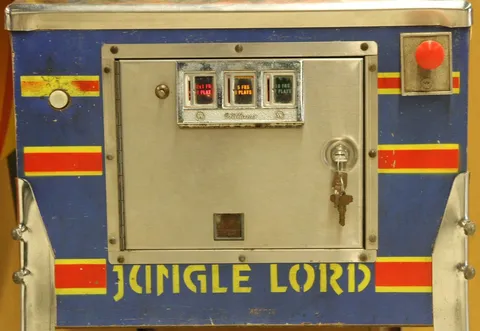

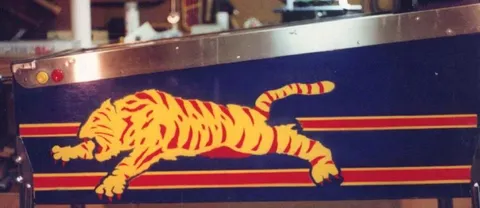

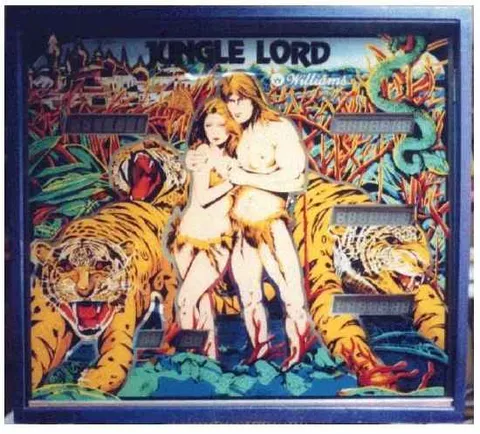

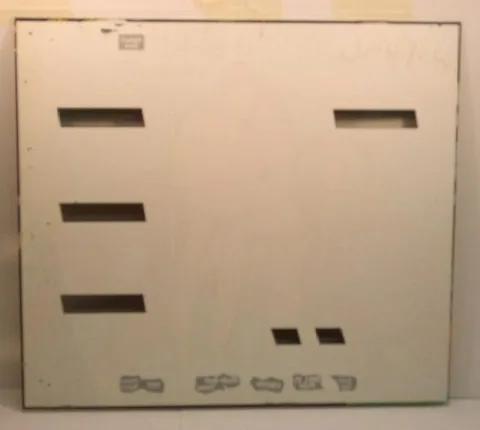

The Jungle Lord's fantasy theme, brought to life by artists Constantino and Jeanine Mitchell, transports players to a mystical realm across its split-level playfield. Early production games featured a red cabinet (roughly 100 made) before Williams switched to a blue cabinet with slightly revised tiger artwork. With 6,000 confirmed units produced, Jungle Lord remains a well-regarded machine for collectors and serious pinball aficionados seeking an authentic experience of 1980s pinball innovation.

Images (37)

Technical Details

Theme:
Fantasy
Model Number:
503

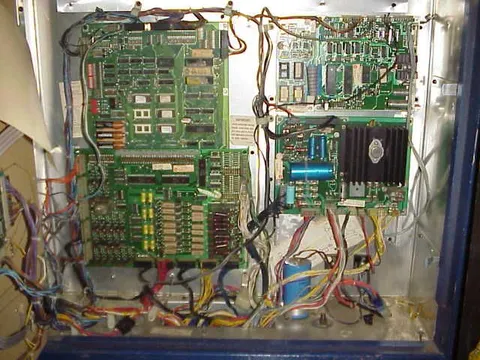

MPU:
Williams System 7
Notable Features:
Flippers (4), 3-bank drop targets (2), 5-bank drop targets (1), Kick-out hole (2), Magna-Save, Split-level playfield (the second of the four split-level System 7 games that Williams produced). Landing a ball in the kick-out hole releases a ball in a mini-bagatelle located in the upper playfield.

Credits

Designer:
Barry Oursler
Artist:
Constantino Mitchell, Jeanine Mitchell
Software:
Larry DeMar

ROM Files

Documentation

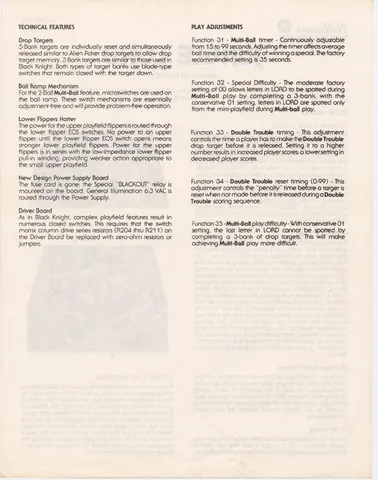

  • Parts Supplement (March 1981)
    14 MB
    Download
  • Playfield Solenoid Wiring Diagram (schematic page 25)
    124 KB
    Download
  • Schematic Diagrams (paginated, some are red-lined)
    7 MB
    Download
