Judge Dredd

Manufacturer: Midway Manufacturing Company, a subsidiary of WMS Industries, Incorporated, of Chicago, Illinois, USA (1988-1999) [Trade Name: Bally]
Year: 1993
Date: September, 1993
Type: Solid State Electronic (SS)
Players: 4
Production: 6,990 units (confirmed)

About This Machine

Judge Dredd, designed by John Trudeau and released by Midway (under the Bally trade name) in September 1993, brought the comic-book character from '2000 AD' (not the 1995 film) to the pinball world. As part of Williams/Midway's widebody "SuperPin" line, 6,990 units were produced, and it stands as a technically ambitious solid-state machine for its era.

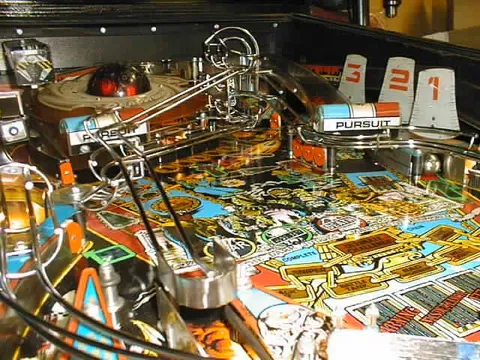

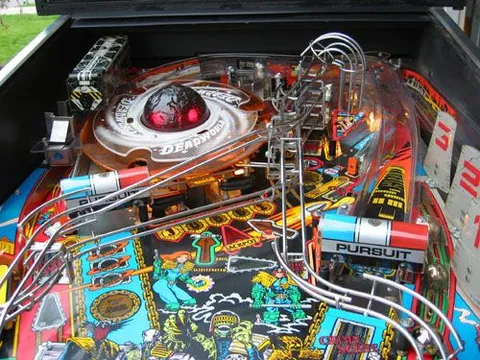

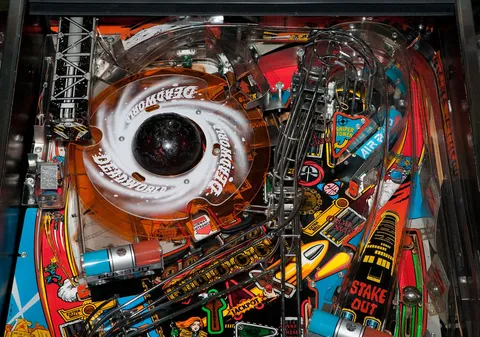

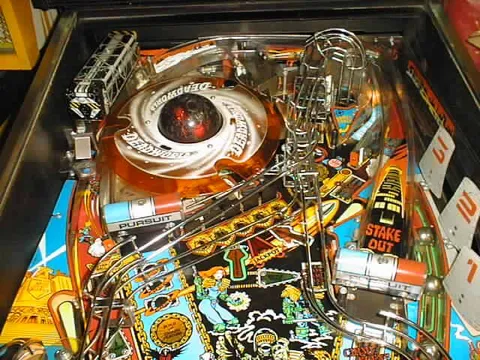

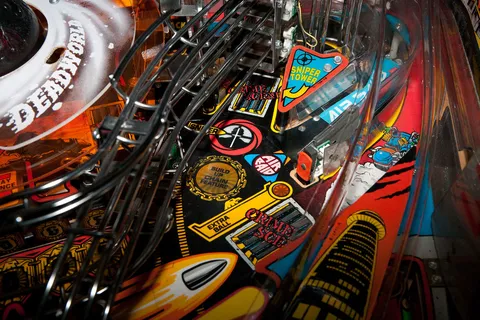

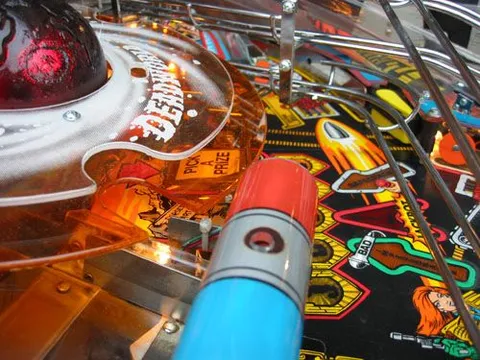

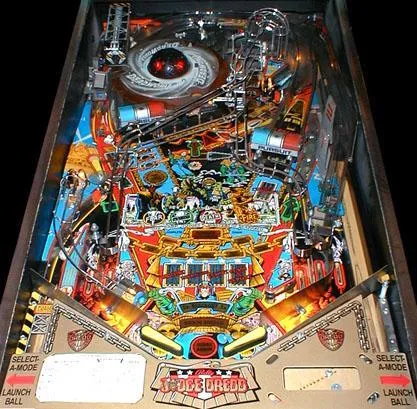

Judge Dredd's gameplay is marked by four flippers and two slingshots, allowing for intricate ball control. The machine features a six-ball multiball mode, inline captive balls, a rotating planet-and-rings feature, and a magnetic robotic arm that lifts the locked ball off the ring. Nine modes plus the "Ultimate Challenge" wizard mode, along with a separate "SuperGame" feature offering four additional modes for an extra credit, give the game exceptional depth — SuperGame was unique to Judge Dredd among the SuperPin titles and kept its own high-score records on the dot matrix display.

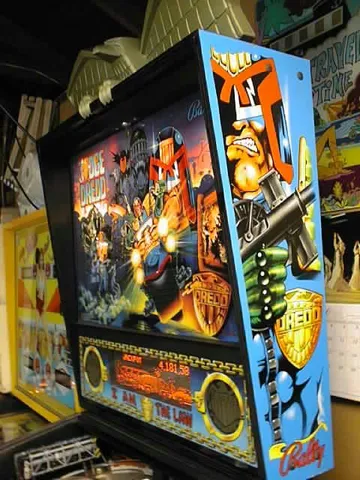

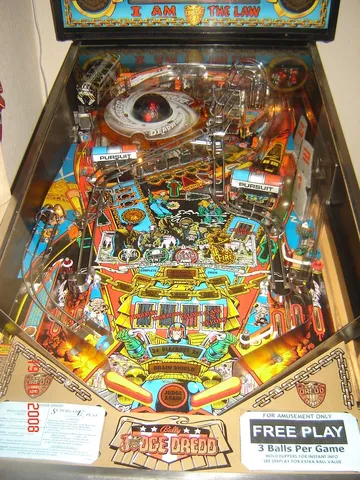

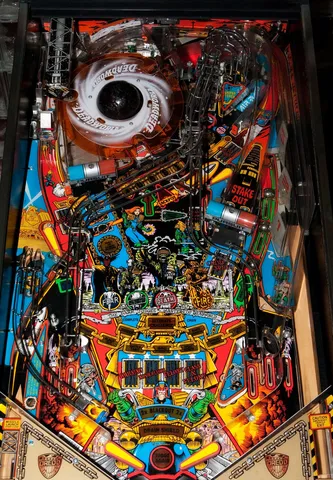

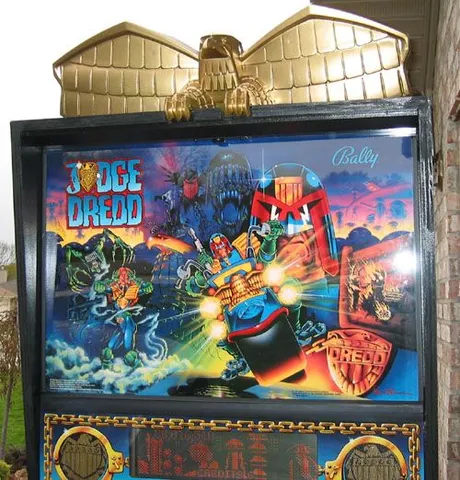

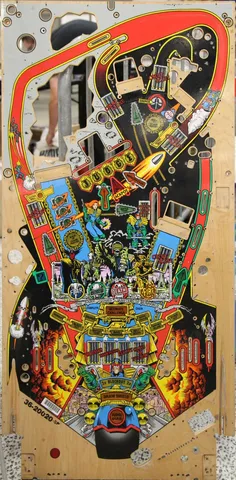

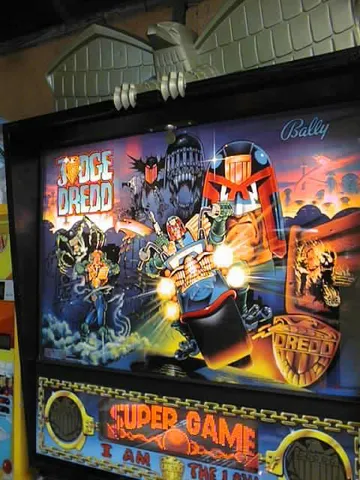

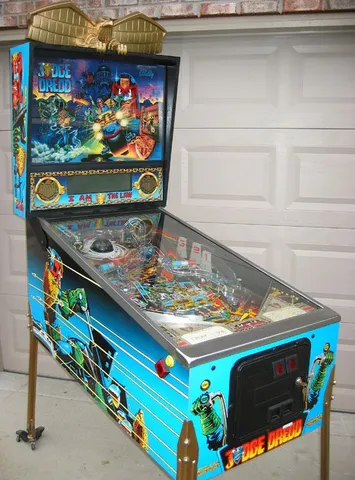

The machine's design is equally striking, with a diamond-plate playfield and an eagle topper on the backbox, and it notably has no pop bumpers. The planet-ring mechanism was reworked between prototype and production games after concerns from a European distributor about potential ball jams, trading the more elaborate prototype version for a simpler, more reliable virtual-lock system. Judge Dredd remains a standout of Williams/Midway's early-DCS era and a favorite among collectors today.

Images (37)

Technical Details

Theme:
Fictional - Licensed Theme
Model Number:
20020
MPU:

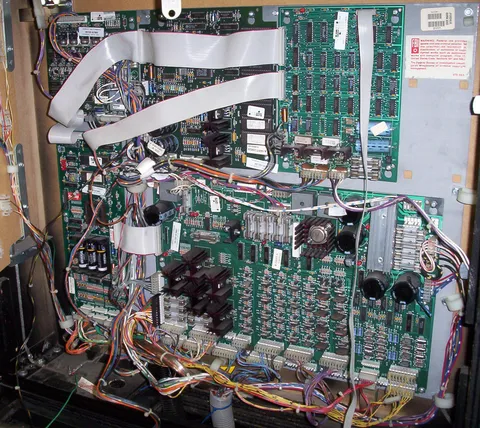

Williams WPC (DCS)
Notable Features:
Flippers (4), Slingshots (2), Autoplungers (2), 6-ball multiball, Inline Captive Balls (3). Rotating planet and rings, Magnetic robotic arm, Diamond Plate playfield, Eagle topper on backbox. Maximum 1 buy-in ball per player (operator option). No pop bumpers. 9 modes + "Ultimate Challenge" wizard mode, SuperGame Feature (4 additional modes)

Credits

Designer:
John Trudeau
Artist:
Kevin O'Connor
Software:
Jeff Johnson
Music:
Paul Heitsch, Vince Pontarelli
Sound:
Paul Heitsch
Mechanics:
Ernie Pizarro
Dots/Animation:
Eugene Geer, Scott Slomiany

ROM Files

  • Game ROM L-1 (With Planet Lock)
    409 KB
    Download
  • Game ROM L-7
    434 KB
    Download
  • L3 Sound ROMs (production game - balls do not lock in Deadworld)
    877 KB
    Download

Documentation

Other Files

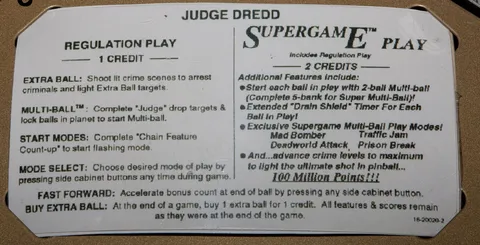

  • Instruction Card (English)
    19 KB
    Download
  • Instruction Card (French)
    19 KB
    Download
  • Reproduction Score And Instruction Cards (Including French Card)
    98 KB
    Download
