Honey

Manufacturer: Williams Electronics, Incorporated (1967-1985) [Trade Name: Williams]
Year: 1971
Date: December 17, 1971
Type: Electro-mechanical (EM)
Players: 4
Production: 6,301 units (confirmed)

About This Machine

Honey, designed by Steve Kordek and manufactured by Williams Electronics starting December 17, 1971, is a four-player electro-mechanical machine from the later years of the EM era. It was a solid commercial success for Williams, with a confirmed total production of 6,301 units, the majority of which were built for export.

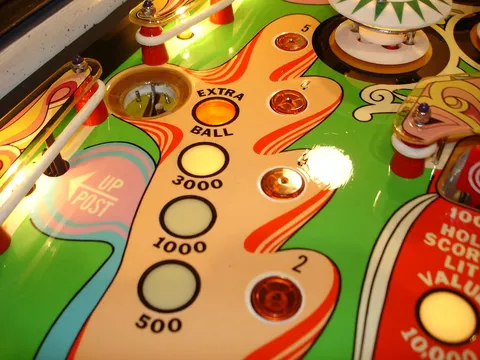

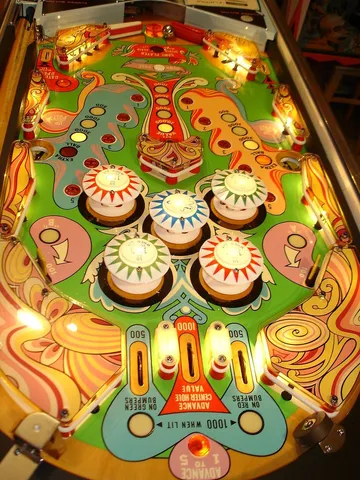

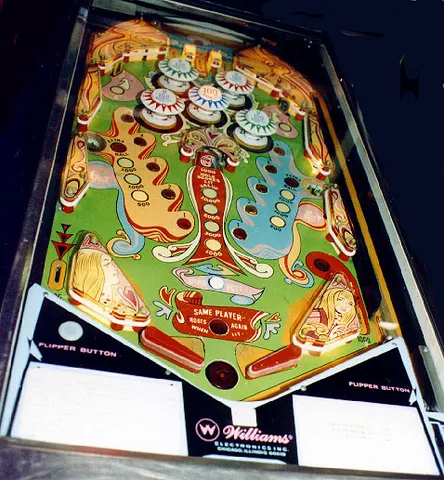

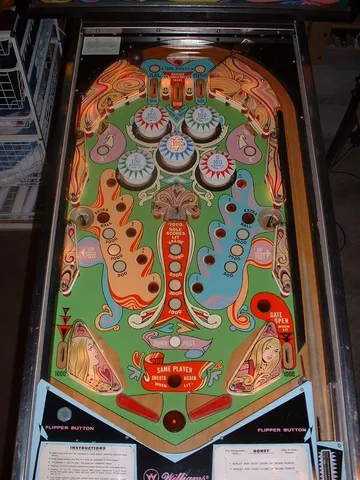

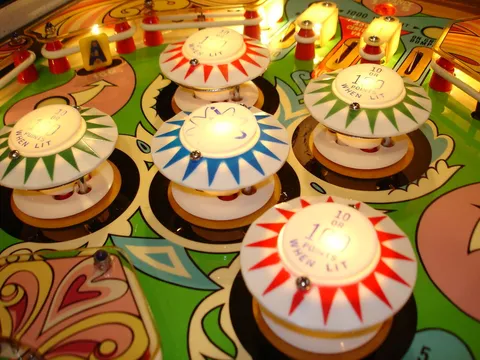

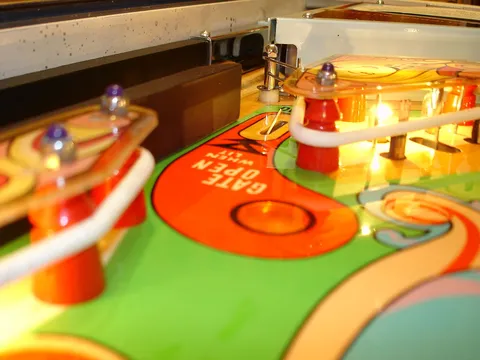

The gameplay is straightforward yet engaging. Players control two flippers to navigate a layout featuring five pop bumpers, two slingshots, three drop targets, and three kick-out holes, one of which is protected by a drop target. Twelve roll-over buttons feed the scoring, which maxes out at a displayed 99,990 points per player, and the layout includes a center up-post and a right outlane ball return gate.

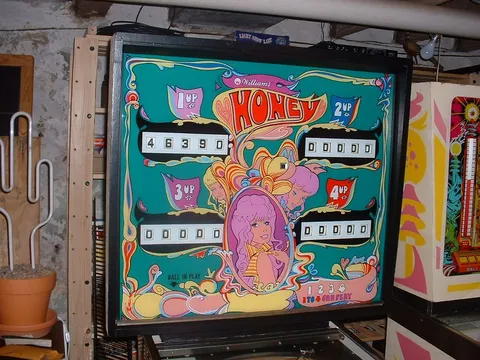

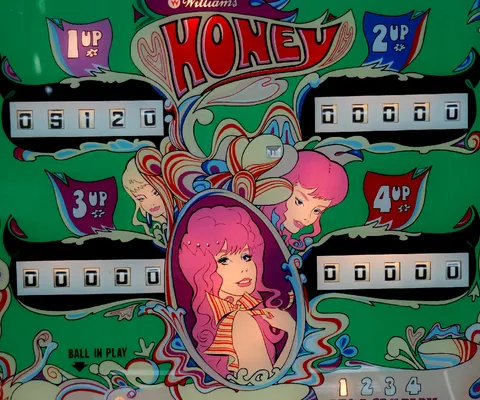

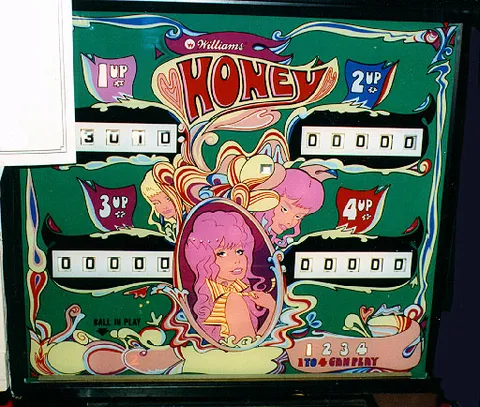

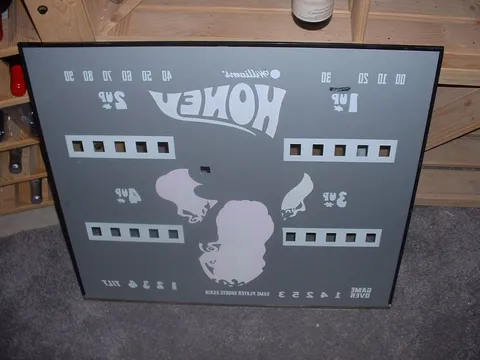

Honey's Girls/Women - Romance theme reflects the era's fondness for glamorous subject matter on backglass and playfield art. As a well-featured, high-production Kordek design, it is a representative example of Williams EM pinball at the start of the 1970s.

Images (22)

Technical Details

Theme:
Girls/Women - Romance
Model Number:
404
Notable Features:
Flippers (2), Pop bumpers (5), Slingshots (2), Drop targets (3), Kick-out holes (3), Rollover buttons (12), Center Up-Post, Right outlane ball return gate. The center kick-out hole is protected by a drop target. Maximum displayed point score is 99,990 points per player.

Credits

Designer:
Steve Kordek

Documentation

  • Instruction Manual and Catalog Supplement "S-S" (OCR searchable)
    5 MB
    Download
  • Reproduction Instruction Card and Score Cards (German)
    24 KB
    Download
  • Schematic Diagram (continuous)
    743 KB
    Download
