Gold Wings

Manufacturer: Premier Technology (1984-1996) [Trade Name: Gottlieb]
Year: 1986
Date: October, 1986
Type: Solid State Electronic (SS)
Players: 4
Production: 3,260 units (confirmed)

About This Machine

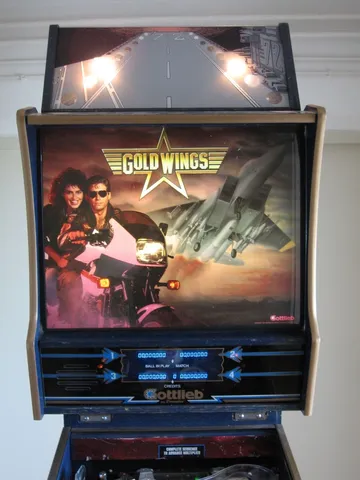

Gold Wings is a solid-state electronic pinball machine released by Premier Technology (under the Gottlieb trade name) in October 1986, with a confirmed production run of 3,260 units. Designed by John Trudeau with software by John Buras, it runs on the Gottlieb System 80B platform. The artwork was a team effort: Larry Day handled the playfield and cabinet art, while Don Marshall created the photographic translite and the game's brochures and advertisements.

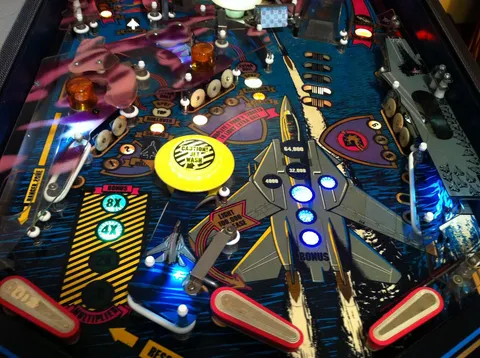

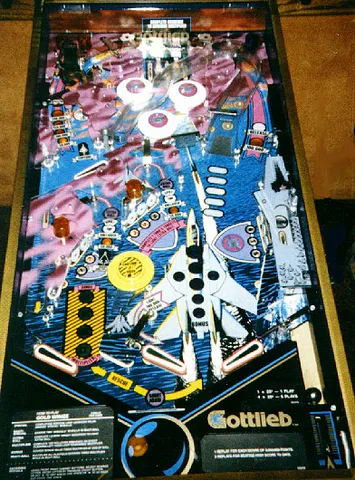

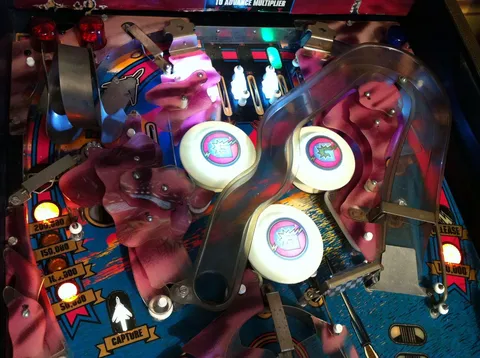

The aviation-themed gameplay gives players plenty to shoot at: four flippers, four pop bumpers, eight standup targets, six rollunders, a spinning target, a ramp, a kick target, and a kick-out hole, plus a 2-ball multiball. The layout's showpiece is a 360-degree vertical loop on the playfield, a dramatic feature that suits the flight theme perfectly. In another unusual design choice, the game has no outlanes.

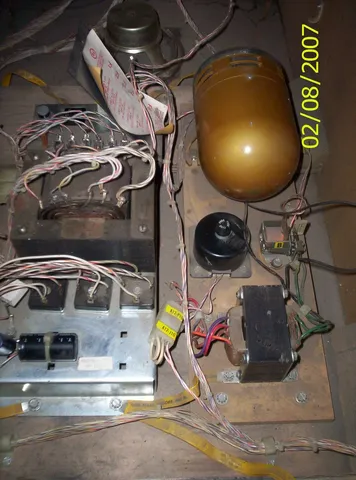

Gold Wings also makes noise in a memorable way: an air siren mounted in the cabinet sounds off when a player scores 500,000 points in a single shot, earns an extra ball, or wins a replay. With its vertical loop, siren, and photographic translite, Gold Wings is a distinctive entry in Premier's System 80B lineup and an interesting find for fans of 1980s solid-state pinball.

Images (15)

Technical Details

Theme:
Aviation
Model Number:
707
MPU:

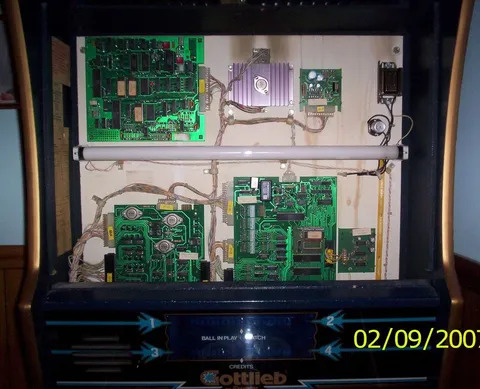

Gottlieb System 80B
Notable Features:
Flippers (4), Pop bumpers (4), Standup targets (8), Rollunders (6), Spinning target (1), Multiball (2-ball), Ramp (1), Kick target (1), Kick-out hole (1). 360-degree vertical loop on playfield. Air siren in cabinet activates when 500,000 points are scored in one shot, or when extra ball is earned, or when replay is achieved. No outlanes. Photographic translite.

Credits

Designer:
John Trudeau
Artist:
Don Marshall, Larry Day
Software:
John Buras
